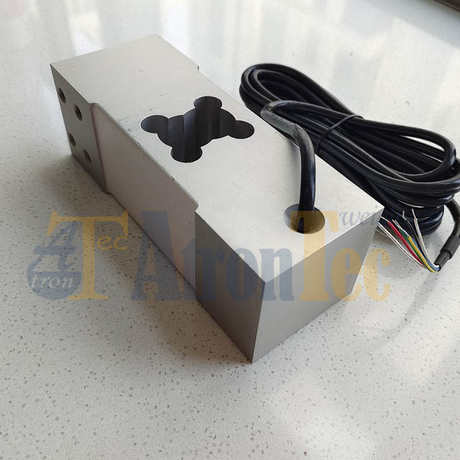

750kg Capacity Single Point Load Cell,Aluminium-alloy IP65 load cell for platform scales
| Load Cell Features： |
| Aluminium-alloy IP65 single point load cell |
| Colourless anodized |
| Suitable for single and double load cells structured platform scales |
| Maximum platform size: 600 x 600 mm |
| A 1000 Ohm type available (R1) but is excluded from OIML |
Load Cell Wiring:
Load Cell Outline Size:
Load Cell Specifications:
| Accuracy class |
| C3 |
| Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.2 |
| Maximum capacity ( Emax ) | kg | 750 |
| Maximum number of load cell intervals ( nLC ) |
| 3000 |
| Ratio of minimum LC verification interval Y=Emax/vmin |
| 10000 |
| Combined error | %FS | ± 0.02 |
| Minimum dead load | kg | 0 |
| Safe overload | %FS | 120 |
| Ultimate overload | %FS | 150 |
| Zero balance | %FS | ± 2.0 |
| Excitation, recommended voltage | V | 5 ~ 12 (DC) |
| Excitation maximum | V | 18( DC ) |
| Input resistance | Ω | 406 ± 6 |
| Output resistance | Ω | 350 ± 3 |
| Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) |
| Compensated temperature | ℃ | -10~+40 |
| Operating temperature | ℃ | -35 ~ +65 |
| Storage temperature | ℃ | -40 ~ +70 |
| Element material |
| Aluminium |
| Recommended torque on fixation | N.m | M8:25 |
| Ingress protection (according to EN 60529) |
| IP65 |
