TCS-MINI
ATRONTEC

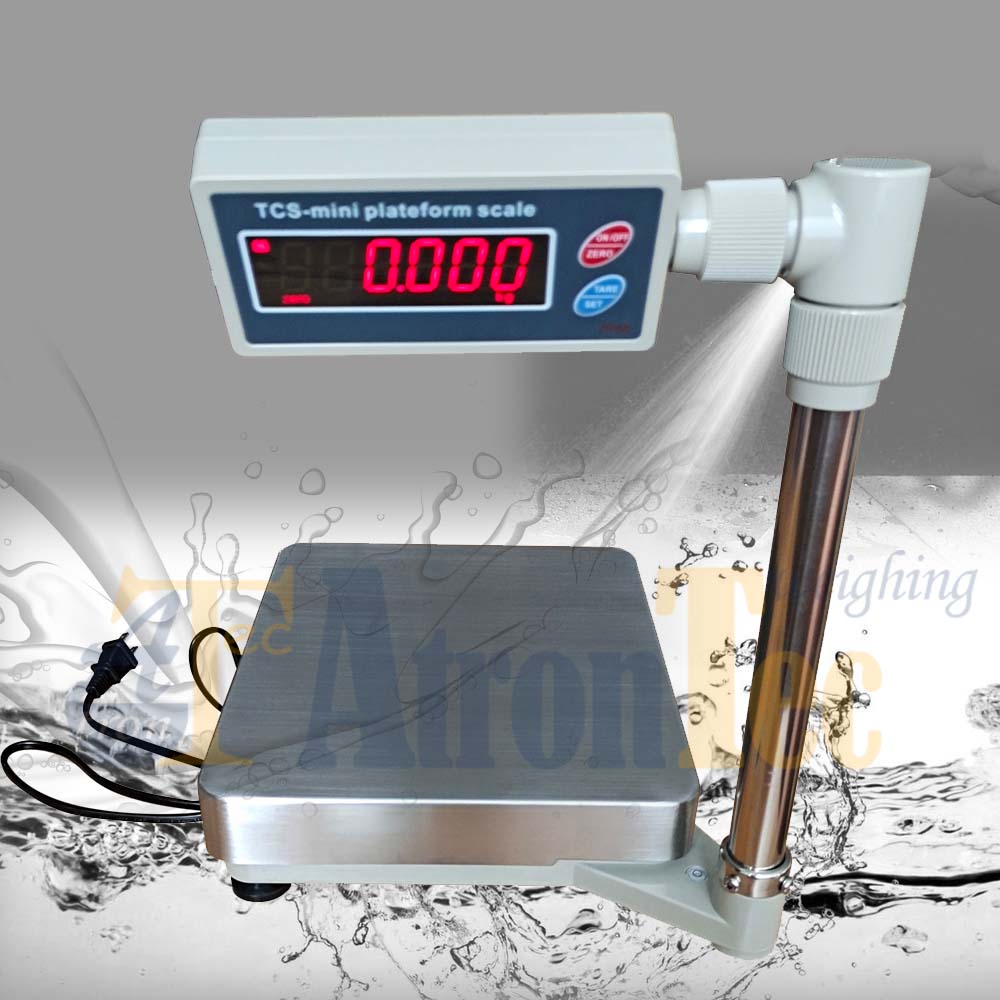

30kg Waterproof Platform Scales,300*260mm Portable Weighing Scales
This mini platform scale with compact structure is specially for harsh weighing industries. 30kg capacity,large LED Display enables clear reading,two functional keys and adjustable display make weighing tasks simple and easy. So this platform scale can be widely used in sea food,meat weighing ,vegetable markets,fruit stores,supermarkets,parcel weighing,chemical products and other weighing industries.
Waterproof Platform Scale Features
The comprehensive waterproof sealing treatment IP68 can meet the special weighing environment(moistrue,corrosion,etc)
The dual LED display indicator can be multi-position control
21mm large LED,clearly legible
This scale is convenient and portable due to compact design and light weight
Inside charger,easier and more reliable
Set-value alarm function
Counting function
Measurement unit switch(g,kg,lb,lb.oz,oz)
Voltage indicate and low voltage alarm function
Waterproof Platform Scale Characteristics
Scale capacity : 30kg
Scale accuracy: 10g
21mm high and red LED
Stainless steel weighing pan
Scale weighig pan size: 260*300 mm
Waterproof Platform Scale Parameters
mini-3 | mini-6 | mini-15 | mini-30 | mini-45 | mini-60 | |
Max. Capacity. | 3kg | 6/7.5kg | 15kg | 30kg | 45kg | 60kg |
Min. Capacity | 20g | 40g | 100g | 200g | 300g | 400g |
Verification interval | 1g | 2g | 5g | 10g | 20g | 20g |
Actual interval (d) | 0.1g | 0.2g | 0.5g | 1g | 2g | 2g |
Max. Tare | 3kg | 6/7.5kg | 15kg | 30kg | 45kg | 60kg |
Accuracy level | Ⅲ | |||||
Working Temperature | -10℃~﹢40℃ | |||||
Power Supply | 6V5Ah sealed lead-acid battery(Special-purpose charger ) | |||||
Weighing Pan Size | 260 × 300 mm | |||||
Notes:
Please place the platform scale on a stable and flat table. Do not place it on a shaking or vibrating floor. Adjust the 4 bottom feet to keep the platform scale stable and level. Kindly be noted that the air bubble must be in the center of the circle.
Try to avoid using the platform scale in a place where the temperature changes too much or the air flow is violent.
Please do not place anything on the weighing pan while turning on the power.
If the low power warning symbol is displayed, it means that the platform scale needs to be charged.
