80t and 3*18m Analog Truck Scale with side rails,Weighbridges with steel ramps

80t and 3*18m Analog Truck Scale with side rails

Weighbridges with steel ramps

* This Weighbridges are used for legal-for-trade freight weighing of road vehicles or for loading goods on the scales.

(e.g. Bulk cargo)

* Examples of some typical applications are: inbound / outbound weighing in manufacturing plants & transport

companies, or comfortable material-flow management systems, e.g. in waste management facilities.

* The combination of weighing indicators or PC solutions produces user-friendly, high-performance scale systems,

which can be easily connected to ERP-systems.

* Truck scales are pit mounted (embedded in the roadway), or above-ground scales.

Weighbridge Features:

- Width*length:3*18m(3*12m/3*24m are available)

- Material：steel

- Structure: Standard U shape beam,modules design for easy loading in truck or container

- Top Steel Thickness: 10mm checker Plate

- U Beam Height: 355mm

- U Beam thickness: (5mm/6mm/5mm)x2

- Painting: Anti rust and anti-corrosion painting

- Capacity: 80T(60t~120t upon the request)

- Weight: about 9000kg for 3*18m(6 sections)

- Foundation：Shallow / No Foundation Pit

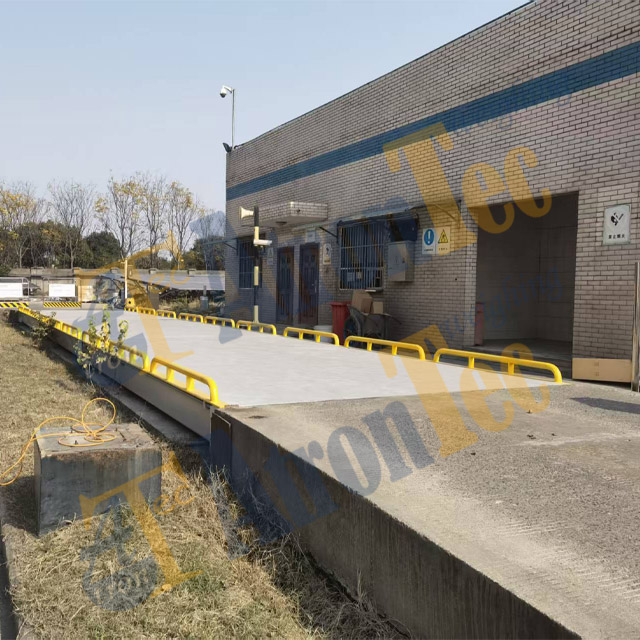

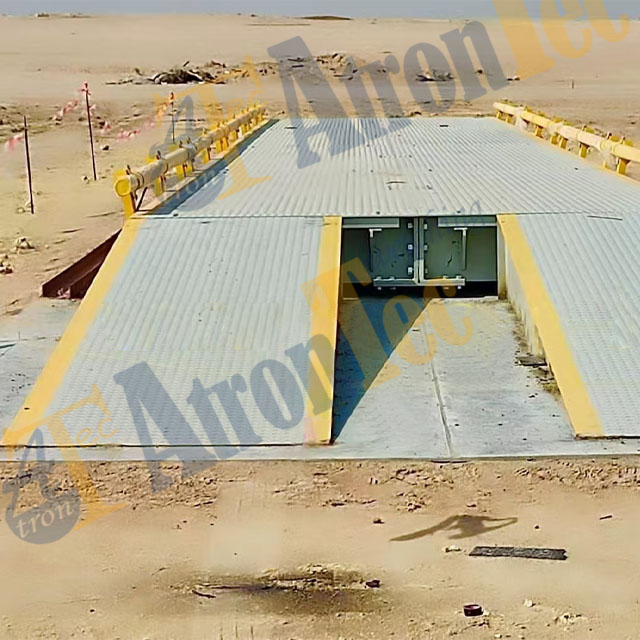

- Side rails and ramps are available

Weighing Indicator

- Brand and model: YAOHUA(analog weighing indicator)

- Keyboard: Number keys(0~9); Function keys(24,10 composite keys with number keys)

- Max. connection number of load cell: ≤16 analog load cells

- Loadcell connection mode: 6 wire, auto compensation for long distance

- Clock: displaying year,month,date,hour,minute,second,leap year/month automatically,without the influence from power break down

- Transimission: RS 232 / RS422(optional)

- Transimission distance: ≤30 meters

- Transimission method: RS232/RS422(optional)/RS485(optional)

- Baund rate: 600/1200/2400/4800/9600(optional)

- Transmission distance: RS232:≤30 meters; RS422/RS485:≤1200 meters

- With printing interface for connecting with EPSON LQ-300(+),Panasonic KX-P1131 and KX-P121 etc. wide line printers

- Data storage:1000 truck records consisting of truck ID & corresponding tare weight 201cargo ID.1001 weighting records

- Power supply:AC 100~264V;50~60Hz DC 12V/7Ah External battery rechargeable

Load Cell:

- Brand: ZEMIC analog load cells

- Nickel plated alloy steel IP68 sheam beam loadcell

- Accuracy class: OIML R60 C3

- Capacity: 10t~50t

- Working temperature: -35°C ~ +65°C; Storage temperature: -40°C ~ -70°C

- Safe overload: 150%FS; Ultimate overload: 300%FS

Junction Box:

- Stainless steel housing

- Working temperature: -30°C ~ +60°C

Electronic weighbridges are widely used in many industries, including the following:

Logistics and transportation: Used for monitoring vehicle loads to ensure transportation compliance and optimize efficiency.

Construction and engineering: In the supply chain for construction materials, weighbridges are used to measure large quantities of materials such as gravel and cement.

Agriculture: Used for weighing agricultural products like grains and vegetables to facilitate purchasing and transportation.

Mining and quarrying: Weighing minerals and coal is crucial for trade and operations.

Waste management and recycling: Used to weigh waste and recyclable materials for management and pricing.

Manufacturing: Monitoring the weight of raw materials and finished products to ensure quality control and inventory management.

Chemical industry: Weighing chemical raw materials and products to meet precise ratios and safety requirements.

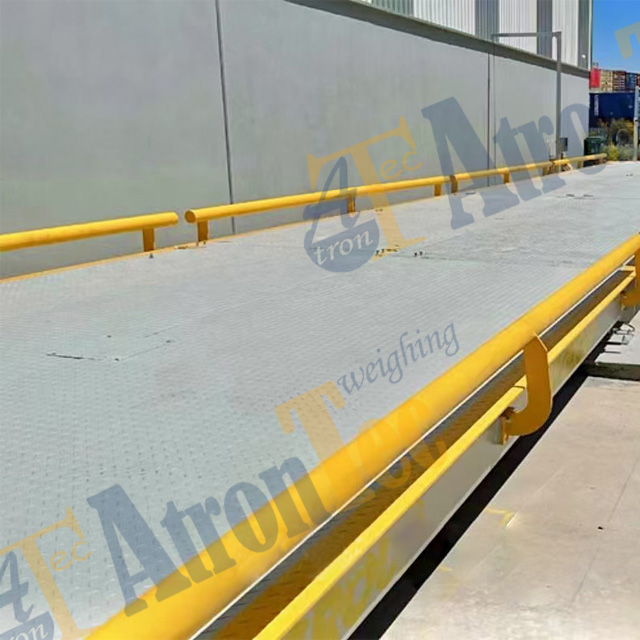

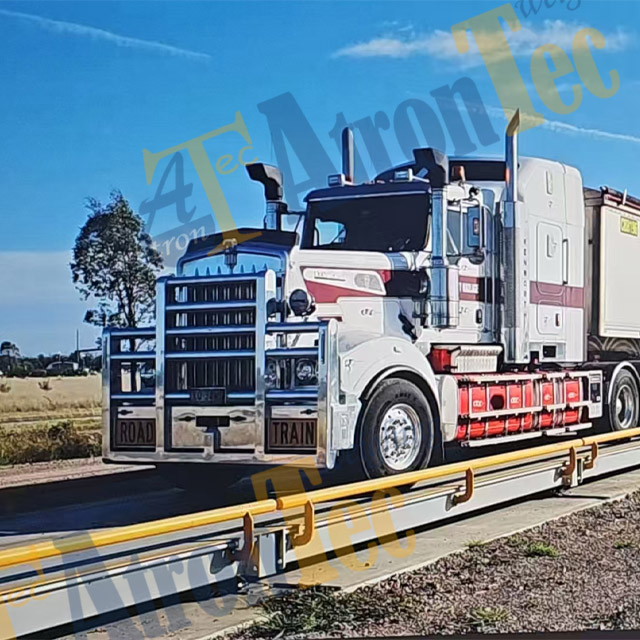

Guardrails and ramps on a weighbridge play important auxiliary roles:

1. Guardrails:

• Safety: The primary function of guardrails is to provide additional safety by preventing vehicles from accidentally driving off the weighbridge during the weighing process.

• Vehicle Guidance: They assist drivers in correctly entering and exiting the weighbridge, ensuring a smooth weighing process.

• Equipment Protection: Guardrails protect the weighing equipment from being directly struck by vehicles, reducing the risk of damage.

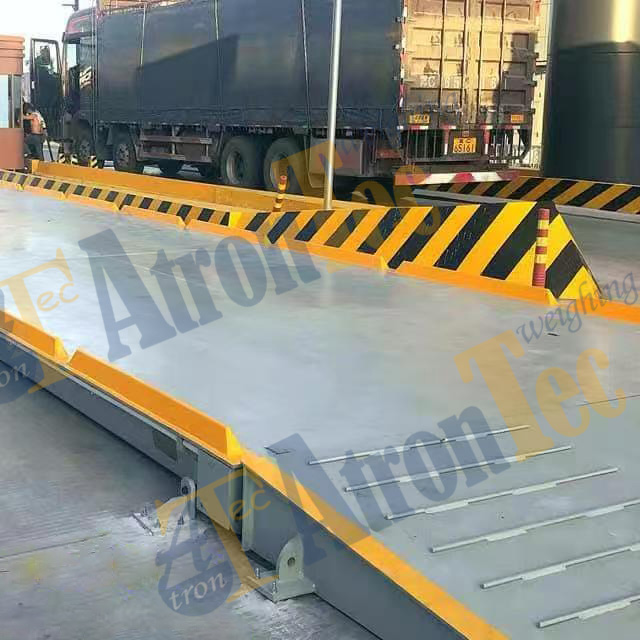

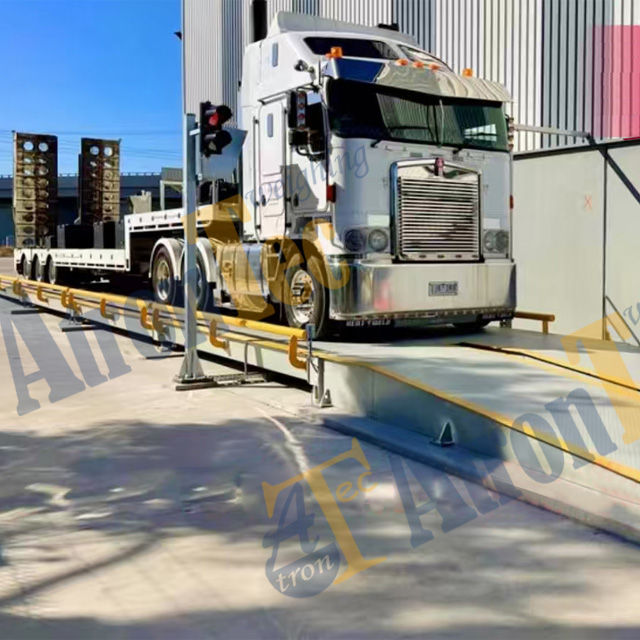

2. Ramps:

• Ease of Access: Ramps provide a gentle transition for vehicles to drive on and off the weighbridge, especially when the weighbridge is elevated above ground level.

• Reduced Wear and Tear: By offering a smooth transition, ramps help reduce wear and tear on tires and other vehicle components when entering and exiting the weighbridge.

• Accuracy Assurance: By ensuring a smooth entry onto the weighbridge, ramps contribute to greater weighing accuracy and help avoid data errors caused by sudden vehicle entry.

Together, these components ensure the safety and operational efficiency of the weighbridge.
