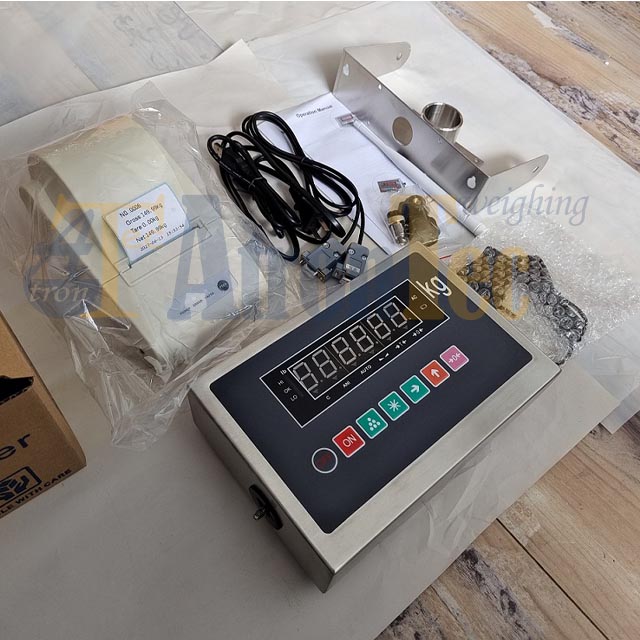

C12 Stainless Steel Weighing Indicator with Label Barcode Printer, WIFI Label Printing Weight Indicator

This weighing indicator has weight unit in kg and lb, gross and net weighing, manual and automatic weight accumulation with serial output, counting functions and 4 set points. The indicator is applicable in either industrial settings or legal for trade applications. It provides the frequently needed ability to transmit and print the data through its serial ports.
Load Cell:
  • C12


C12 Stainless Steel Weighing Indicator with Label Barcode Printer

-- WIFI Label Printing Weight Indicator

    TCP/IP weighing indicator, with WiFi - WAN/LAN
    Modbus ASCII communication protocol, unidirectional and bidirectional communication are optional


  • A304 Stainless steel housing weight indicator

  • This weight indicator can be applied in platform scales

  • With mini label barcode printer

  • Maximum number of load cells: 4 x 350 Ω load cells or 8 x 700 Ω load cells

  • Display: 6-bit Display, 0.8 inches LED

  • High Resolution (× 10) display

  • Weight unit in kg / lb

  • Weighing modes: Gross and net weight weighing

  • Manual and automatic weight accumulation

  • Serial interface RS232 interface with continuous ASCII data output

  • Baud rate 1200, 2400, 4800, 9600

  • Optional RS485 interface

  • Programmable zero tracking

  • Programmable digital filter

  • Animal weighing

  • Hold function

  • Counting function

  • The network cable to connect the computer network interface with the LAN interface on the WiFi board.


Operating temperature0℃ to 40℃
Storage temperature-25℃ to 55℃
Relative humidity≤ 85% non–condensing
External AC adapter

100-240VAC 50/60Hz
