NA4-300KG
MAVIN

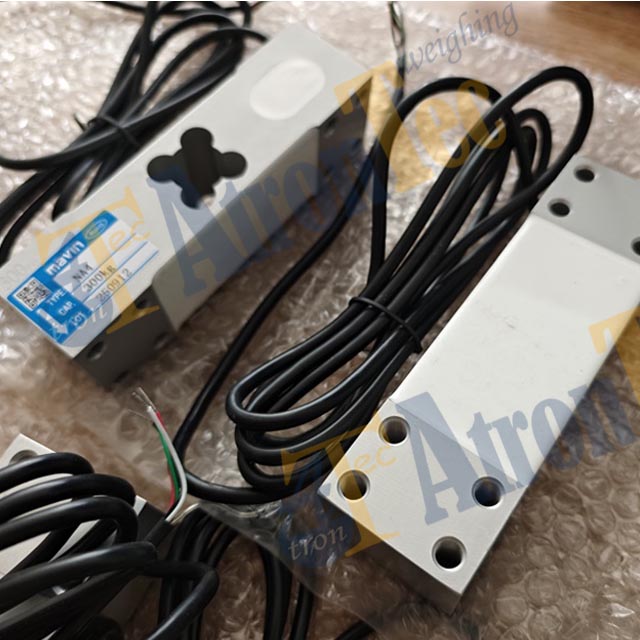

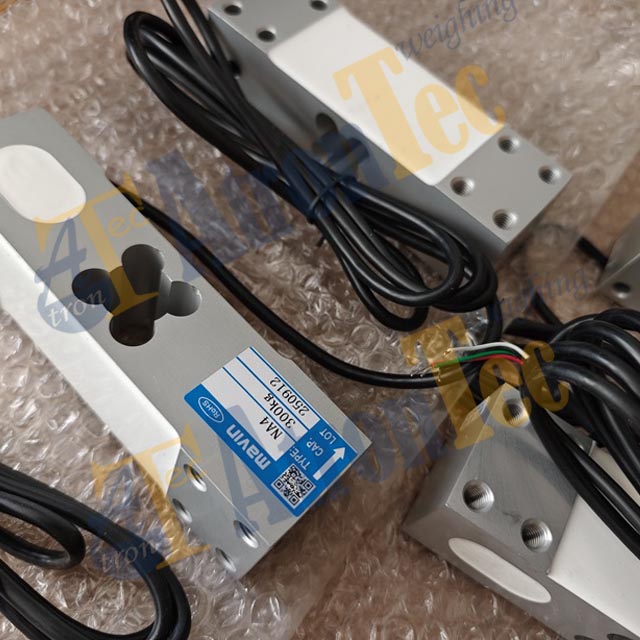

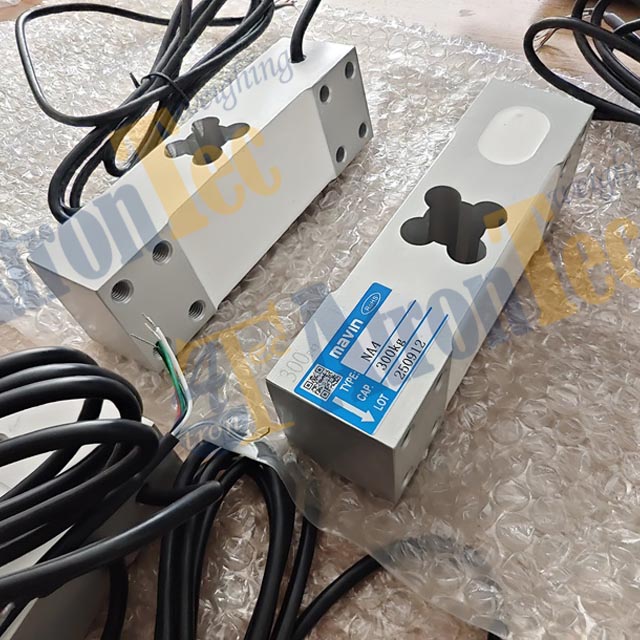

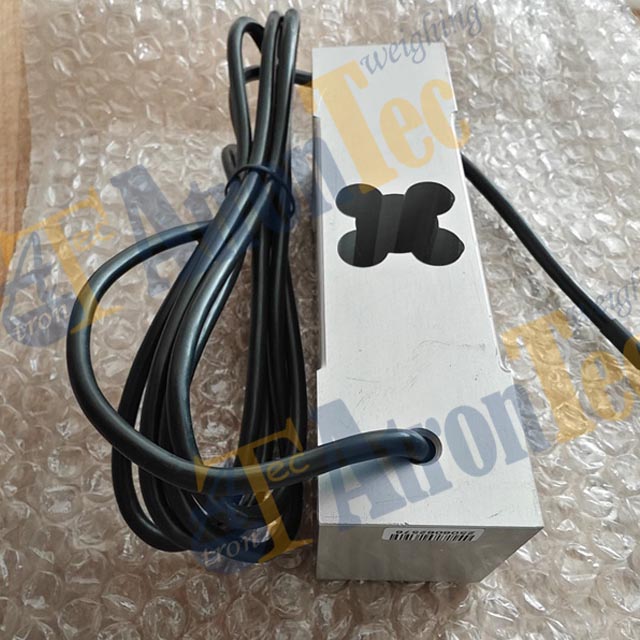

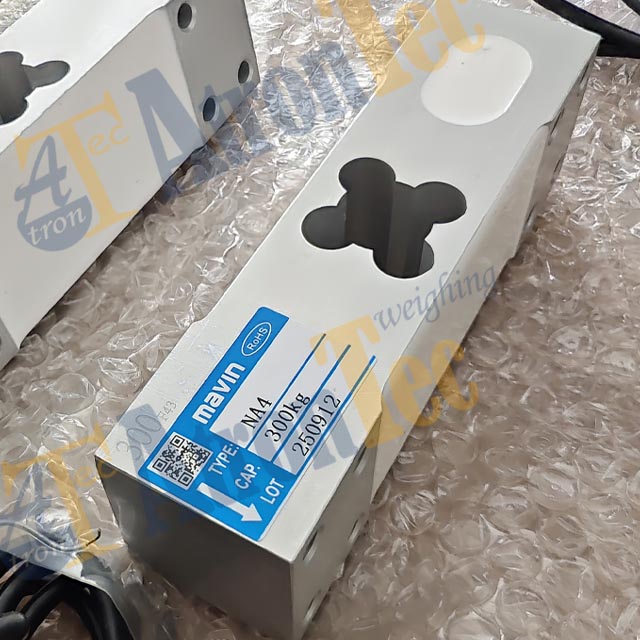

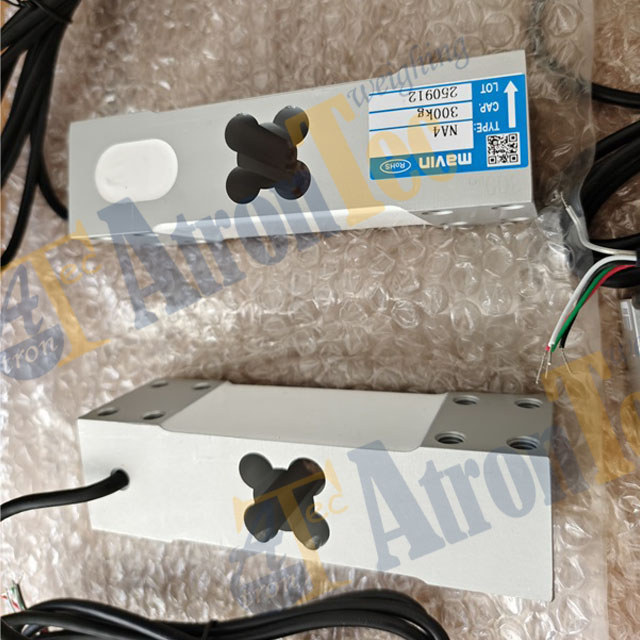

Mavin NA4-300kg Aluminum Alloy Single Point Loadcells
--for bench scales
Loadcell Features:
* Loadcell Brand: MAVIN NA4
* Loadcell Capacity: 300kg
* Loadcell Material: Aluminum Alloy
* Loadcell Outline Dimension:150*45*40mm
* Rated Output:2.0mV/V
* Protection Class: PI66/PI67
* High accuracy OIML approved
* Calibrated to national standards
* Compact Design,Easy to install, Long term, reliable operation
Loadcell Applications:
* Price computing scales
* Counting scales
* Weighing scales
* Retail scales
Loadcell Specifications:
Rated Capacity | 300(kg) |
Rated Output | 2.0 mV/V±5% |
Zero Balance | ±0.0200 mV/V |
Accuracy class | OIML C3 |
Max No.of loadcell interval(nmax) | 3000 |
Min No.of loadcell interval(Vmin) | Emax/7000 |
Non-linearity | 0.017 %R.O. |
Hysteresis | 0.017 %R.O. |
Repeatability | 0.017 %R.O. |
30mins Creep | 0.017 %R.O. |
30mins Return | 0.017 %R.O. |
Safe Overload | 150 %R.O. |
Ultimate Overload | 200 %R.O. |
Temperature Effect On Output | 0.0015 %R.O./℃ |
Temperature Effect On Zero | 0.002 %R.O./℃ |
Input Impedance | 410±15 Ω |
Output Impedance | 350±5 Ω |
Insulation Impedance | ≥5000 MΩ/(50VDC) |
Recommended Excitation | 5~12 VDC |
Maximum Excitation | 15 VDC |
OperatingTemperatureRange | -20~60 ℃ |
Construction | Aluminum Alloy |
Protection Class | IP66 / IP67 |
Cable | φ5×2m |
Recommended Platform Size | 600×600 mm |
Mode of Connection | Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
