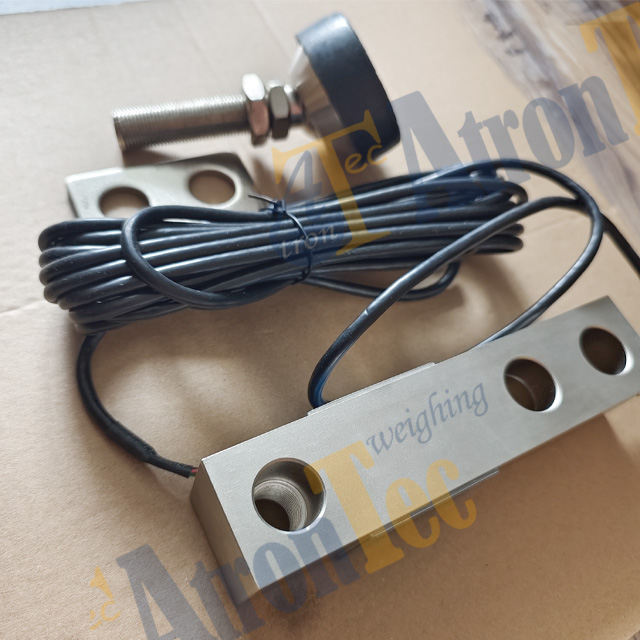

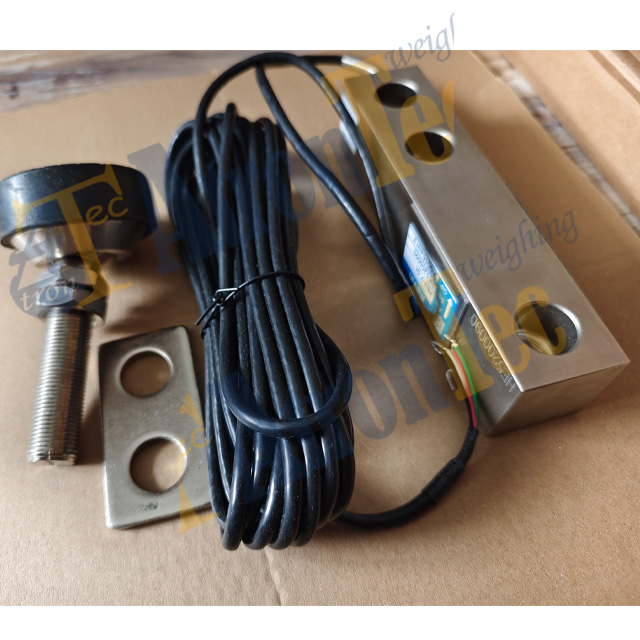

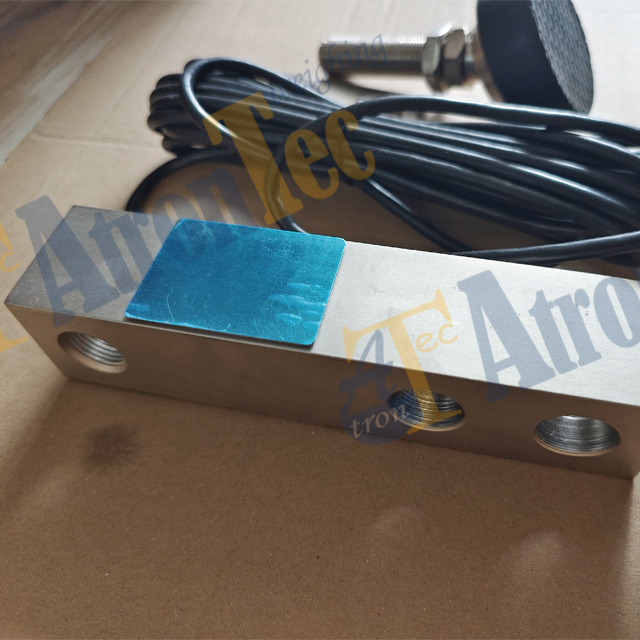

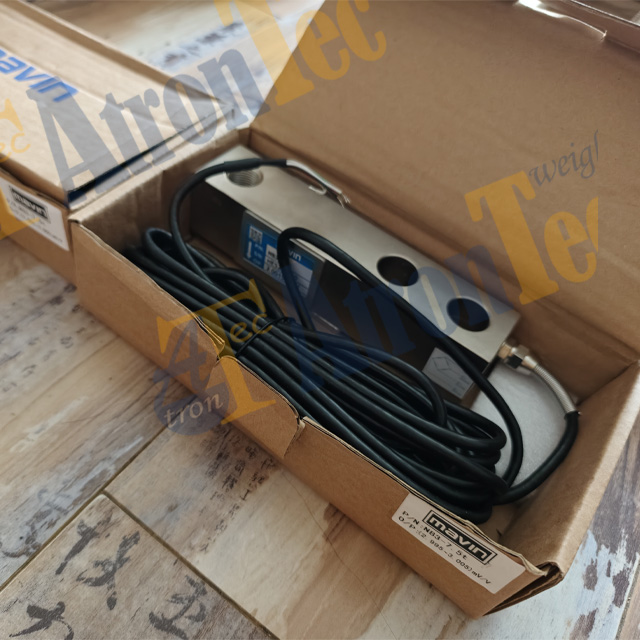

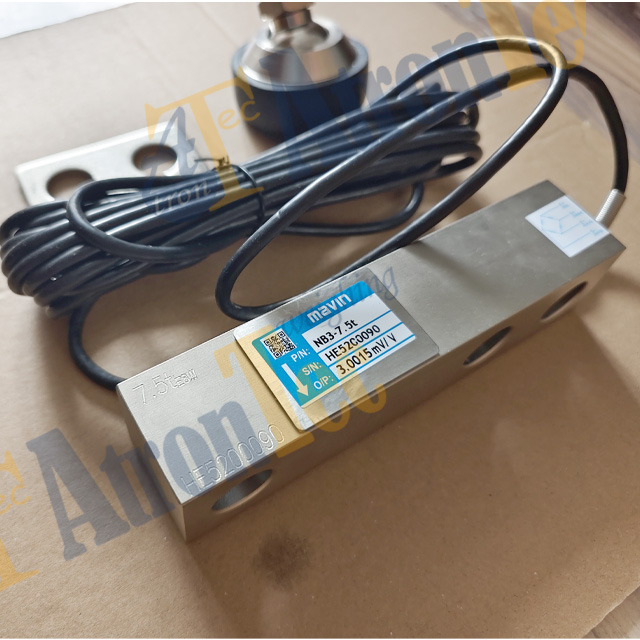

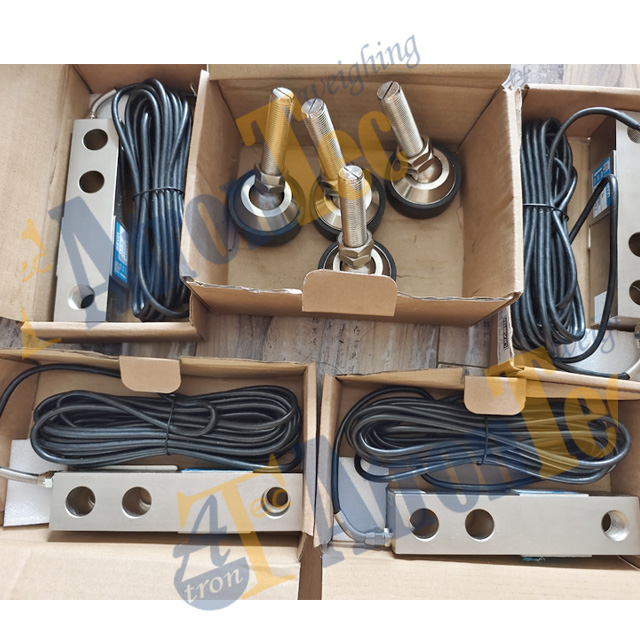

Single Point Shear Beam Loadcells for Industrial Scales,7.5t Platform Scales Loadcells

Alloy steel loadcell
7.t capacity for floor scales
Dimension:172*42*38.1mm
Material:
Capacity:
Waterproof:
Cable length:
Availability:
Quantity:
  • NB3-7.5T

  • MAVIN

Single Point Shear Beam Loadcells for Industrial Scales,7.5t Platform Scales Loadcells


This is Single Ended Shear Beam load cell for applications such as industrial floor scales, barrel scales, and low to medium capacity vessel weighing.

The floor scale load cells are available in a range of environmental sealing up to IP67.


Loadcell Features:

  • Capacity: 2.5t~7.5t

  • Alloy steel construction

  • Environmentally sealed by potting

  • Protection class IP67

  • Suitable for floor scale,hopper scale,industrial weighing system,etc.


Loadcell Specifications:

Rated Capacities

2.5t,3t,5t,7.5t

Rated Output

2.0 mV/V±0.15%;3.0 mV/V±0.15%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./℃

Temperature Effect On Zero

0.003 %R.O./℃

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60 ℃

Material

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×6m

Wiring

Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)


Loadcell Wiring:

  • Red: +EXC

  • Black: -EXC

  • Green: +SIG

  • White: -SIG


Loadcell Dimensions:
